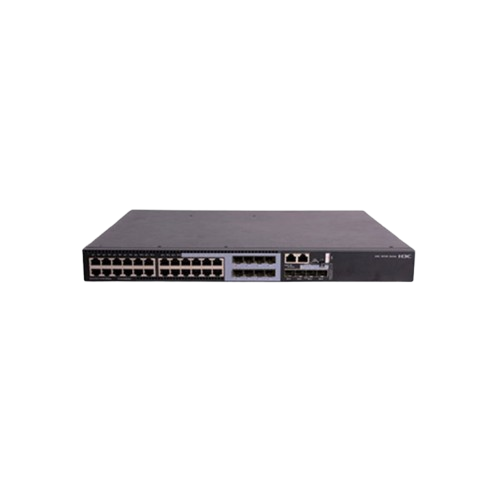

S5130S-28S-HI is a robust, cost-effective, and easily deployable access switch. It features modular dual power supplies for reliability and supports Power over Ethernet Plus (PoE+). Designed for enhanced security and flexibility, it includes advanced routing capabilities, 10GbE uplinks, and support for Software-Defined Networking (SDN) and IRF stacking.
Product Name / Model: S5130S-HI Series High-Performance Ethernet Switch / S5130S-28S-HI
Port & Interface Configuration
Front Panel Data Ports: 24 x 10/100/1000BASE-T Ethernet Ports
Transmission Rate: 10/100/1000Mbps
Communication Mode: Full-Duplex & Half-Duplex
Performance & Capacity
Port Switching Capacity: 128Gbps
System Switching Capacity: 336Gbps
Forwarding Capacity: 96 Mpps (Million Packets Per Second)
Software & Features
Key Functions:
LACP (Link Aggregation Control Protocol)
Stackable (IRF)
VLAN Support
Static Route, RIP, OSPF
SDN (Software-Defined Networking) Enabled
Jumbo Frame Support
Reliability: MTBF 174.61 Years
Physical Specifications
Dimensions (W x D x H): 440 x 360 x 43.6 mm
Weight: ≤ 6 kg
Feature
S5130S-28S-HI
S5130S-52S-HI
S5130S-28S-PWR-HI
S5130S-52S-PWR-HI
Port Switching capacity
128Gbps
176Gbps
128Gbps
176Gbps
Box Switching capacity
336Gbps
Forwarding capacity
96Mpps
132Mpps
96Mpps
132Mpps
Dimensions (W × D × H)
440×360×43.6
440×360×43.6
440×460×43.6
440×460×43.6
Weight
≤6kg
≤6.5kg
≤8.5kg
≤9.5kg
Front panel data ports
24 x 10/100/1000BASE-T Ethernet ports, (including 8 combo ports), 4 x 10G/1G BASE-X SFP+ ports
48 x 10/100/1000BASE-T Ethernet ports, 4 x 10G/1G BASE-X SFP+ ports
24 x 10/100/1000BASE-T Ethernet ports, (including 4 combo ports), 4 x 10G/1G BASE-X SFP+ ports
48 x 10/100/1000BASE-T Ethernet ports, 4 x 10G/1G BASE-X SFP+ ports
Console port
1 × RJ-45 console port 1 × Micro-USB console port Only the Micro-USB console port is available when you connect both ports.
MTBF(Year)
174.61
151.28
89.35
61.87
Feature
S5130S-28C-HI
S5130S-52C-HI
S5130S-28C-PWR-HI
S5130S-52C-PWR-HI
Port Switching capacity
128Gbps
176Gbps
128Gbps
176Gbps
