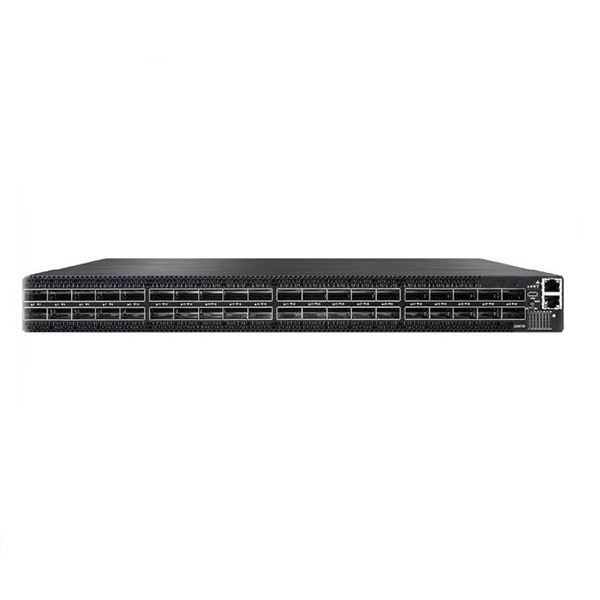

Quantum-2 NDR InfiniBand Switch (Models: MQM9700-HS2F, MQM9700-NS2R) - 400Gb/s

Product Overview

The MQM9700-HS2F is a high-performance, NDR 400Gb/s InfiniBand switch from the NVIDIA Quantum-2 QM9700 series. Designed for extreme-scale computing, it delivers the industry's highest networking performance and density to meet the demanding needs of modern High-Performance Computing (HPC) and Artificial Intelligence (AI) applications.

The NVIDIA Quantum-2 platform is the industry leader in power and density. With its NDR 400 Gb/s InfiniBand throughput, it provides AI developers and scientific researchers with the ultimate networking performance required to solve the world's most challenging and complex problems.

• System Overview


  A high-performance, 1U rack-mount switch offering 64 non-blocking 400Gb/s ports for an aggregate throughput of 51.2 Tb/s. It runs on MLNX-OS and is designed for high-density data center environments.

  Hardware

  • CPU: x86 Coffee Lake i3

  • System Memory: 8GB DDR4 SO-DIMM (2,666 MT/s)

  • Storage: 16GB M.2 SATA SSD (2242 Form Factor)

  Performance & Ports

  • Port Speed: 400 Gb/s per port

  • Switch Radix: 64 ports

  • Aggregate Throughput: Up to 51.2 Tb/s

  • Data Port Connectors: 32 x Octal Small Form-factor Pluggable (OSFP)

  • Cabling Options: Passive/Active Copper cables, Active Fiber cables, and Optical Modules

  Management & Interfaces

  • Management Ports:

    • 1 x RJ-45 (Management)

    • 1 x RJ-45 (UART)

    • 1 x USB 3.0

    • 1 x USB (for I2C channel)

  • Software: MLNX-OS

  Power

  • Power Supply: 1+1 redundant, hot-swappable

  • Input Voltage: 200-240V AC

    • US Minimum: 2 phases of 100-110V (total at least 208V)

  • Efficiency: 80 Plus Gold certified

  • Certification: ENERGY STAR certified

  Cooling

  • Fans: 6+1 redundant, hot-swappable fan units

  • Airflow: Configurable for front-to-rear or rear-to-front cooling

  Physical Dimensions

  • Rack Unit: 1U

  • Height: 1.7 in (43.6 mm)

  • Width: 17.0 in (438 mm)

  • Depth: 26.0 in (660.4 mm)

  • Weight: 14.5 kg (approx. 32 lbs)

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders
