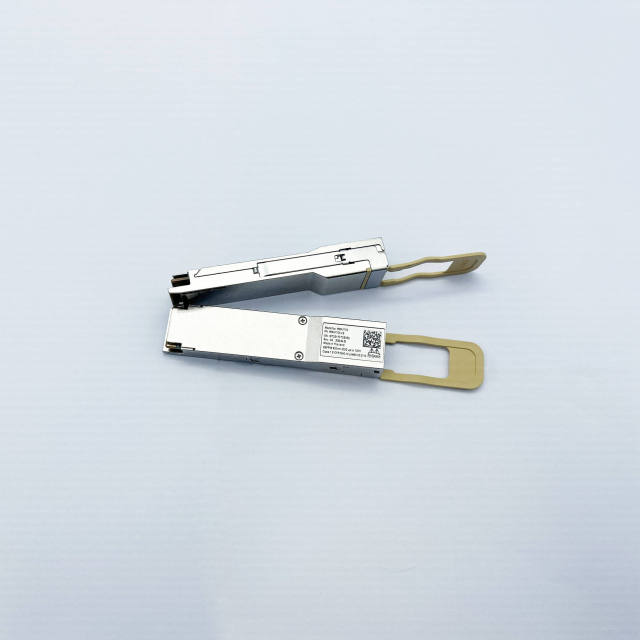

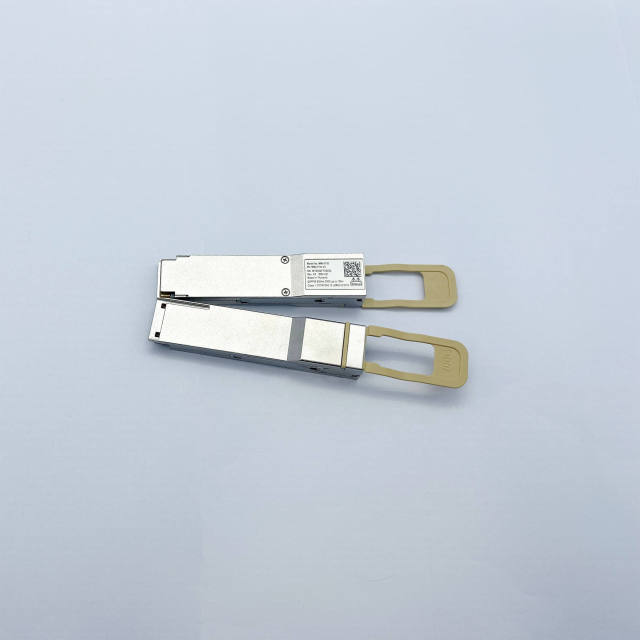

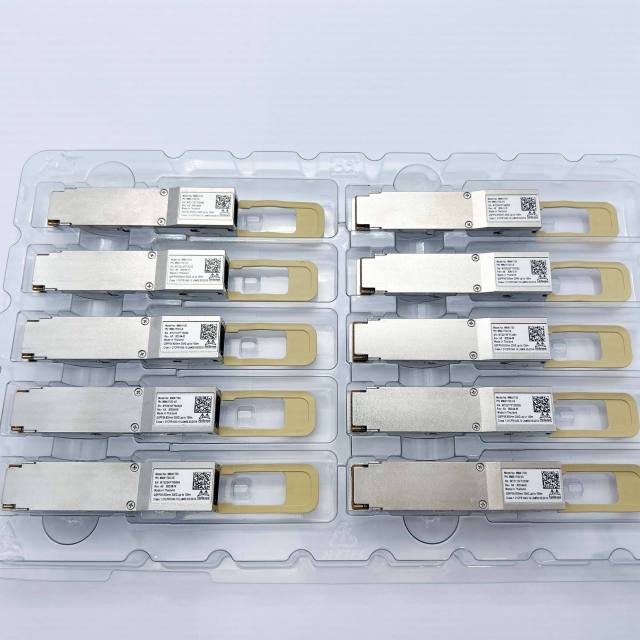

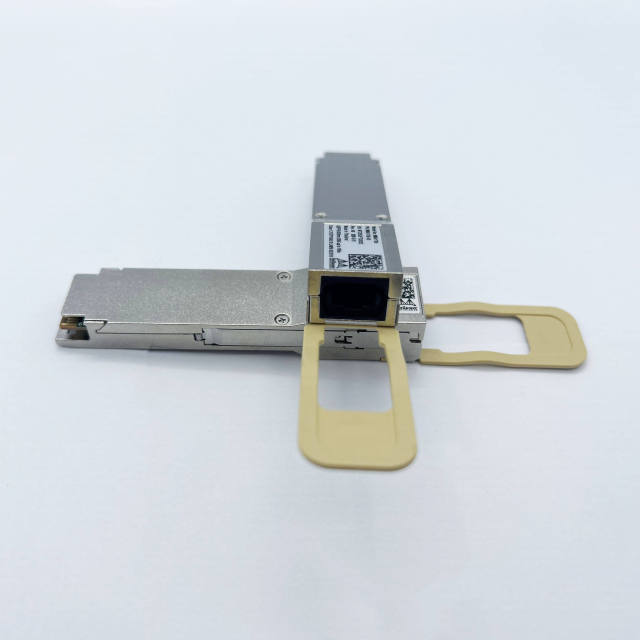

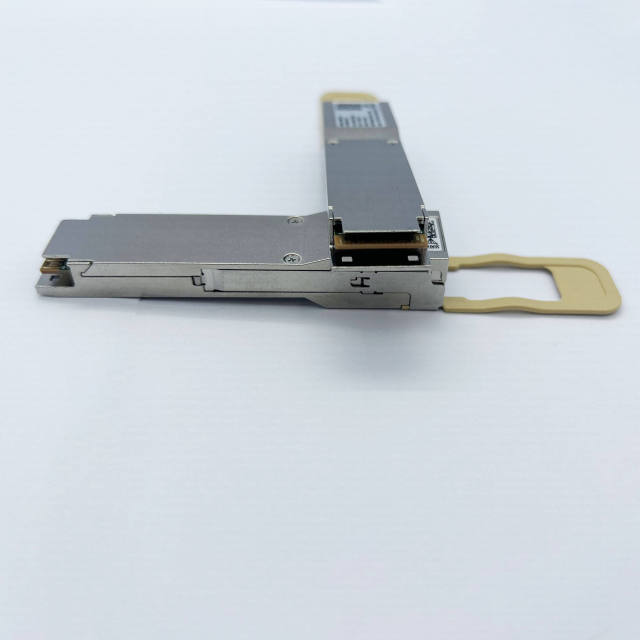

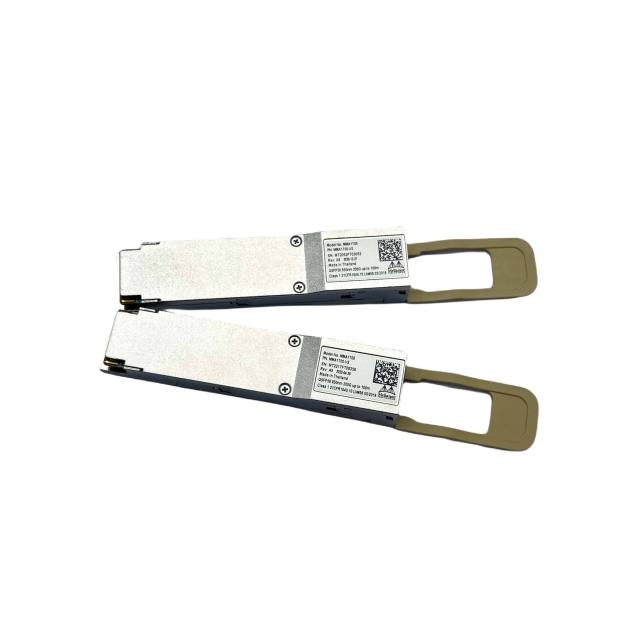

Mellanox MMS1W50-HM QSFP56 Optical Transceiver 200Gb/s HDR & 400Gb/s NDR IB LC-LC 1310nm FR4

Mellanox MMS1W50-HM QSFP56 Optical Transceiver

• Type: Fibre Optic Transceiver
• Model Number: MMS1W50-HM
• Place of Origin: Guangdong, China
• Brand: Mellanox
• Primary Use: Switches
• Network Type: Wired LAN
• Port Type: Pluggable (QSFP56 form factor)
• Connector Type: LC Duplex
• Cable Type: Multi-Mode Fiber (MMF)
• Operating Mode: Multi-Mode
• Wavelength: 850nm
• Port Rate / Application: SR4 (Supporting up to 200Gb/s per port over MMF)
• Networking Port: OSFP-ready
• Supported Protocols/Speeds:
• InfiniBand HDR (up to 200Gb/s)
• 400G NDR InfiniBand (Minimum Receivable Power: 400G)
• Key Feature: Adaptive Routing on Reliable Transport
• Hardware Acceleration: Includes InfiniBand Hardware Acceleration Features
• Power Source: DC 5V
• Power Consumption: 8.5 Watts (max), utilizing 4 channels
• Environmental Specifications:
• Non-operational (Storage) Temperature: 0°C to +70°C
• Compliance: RoHS Compliant
• Warranty: 1 Year
• Compatibility: 100% third-party compatible.
• Quality Assurance: Our dedicated Compatibility Testing Center houses a wide range of mainstream brand switches and devices. Prior to shipment, we code optical modules or DAC/AOC cables and rigorously test them on corresponding switches to guarantee 100% compatibility with your system.
