Huawei New S5736-S48S4X-A 48-Port Gigabit SFP Switch

Huawei S5736-S48S4X-A Network Switch

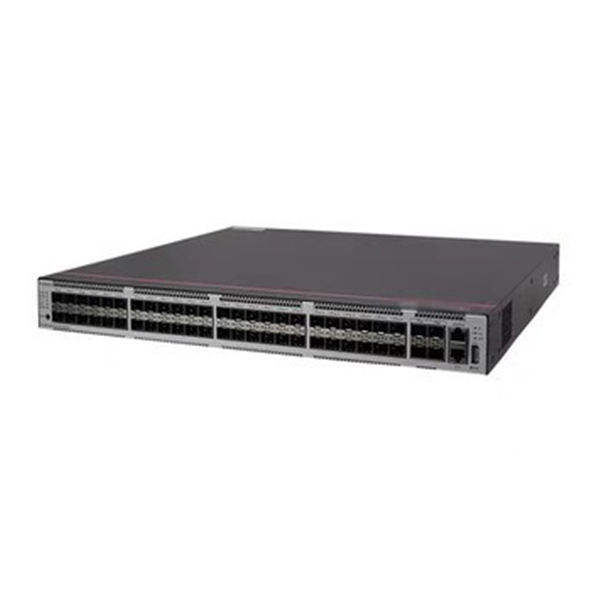

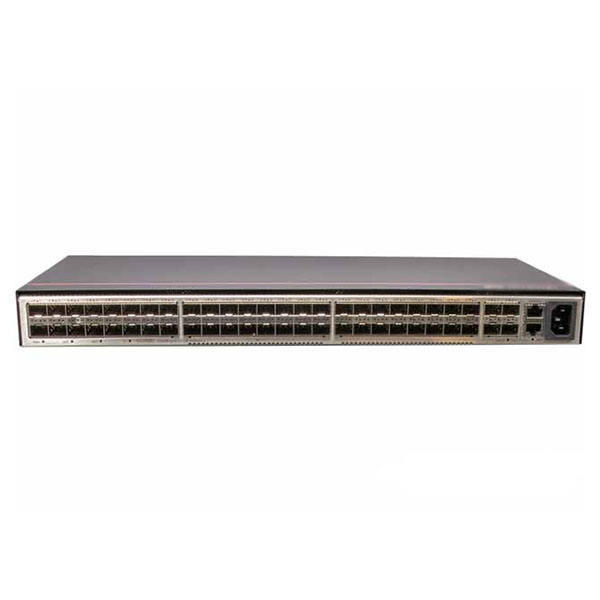

The Huawei S5736-S48S4X-A is a high-performance, layer 3 gigabit switch designed for demanding network environments. It delivers robust switching capacity and versatile, high-speed connectivity in a compact 1U form factor.

Comparison with S6735S-S24X6C Bundle

For reference, the S6735S-S24X6C bundle is a similar offering with the same port configuration (24*10GE SFP+, 6*100GE QSFP28) and also includes one AC power module. Key innovations of the S6735 series highlighted in the text include:

• Multi-Gigabit Ports: Provides 1 GE, 2.5 GE, 5 GE, and 10 GE on the same port for flexible upgrades.

• Long-Distance PoE++: Supports PoE++ (60W) power supply over distances up to 200 meters.

• SVF Client/Parent Role: Can act as either a parent or client within a Super Virtual Fabric.



  Parameters	S6720-26Q-SI-24S-AC S6720S-26Q-SI-24S-AC	S6720-32X-SI-32S-AC	S6720-32C-SI-AC S6720-32C-SI-DC S6720-32C-PWH-SI-AC S6720-32C-PWH-SI	S6720-56C-PWH-SI-AC S6720-56C-PWH-SI	S6720-52X-PWH-SI
  Switching Capacity	2.56 Tbit/s	2.56 Tbit/s	2.56 Tbit/s	2.56 Tbit/s	2.56 Tbit/s
  Forwarding Performance	240 mpps	240 mpps	240 mpps	240 mpps	480 mpps
  Fixed Ports	24 x 10 GE SFP+ 2 x 40 GE QSFP+	32 x 10 GE SFP+	24 x multi-gigabit Base-T Ethernet ports 4 x 10 GE SFP+	32 x 10/100/1,000 Base-T Ethernet ports 16 x multi-gigabit Base-T Ethernet ports 4 x 10 GE SFP+	48 x multi-gigabit Base-T Ethernet ports 4 x 10 GE SFP+
  Extended Slots	Not supported	Not supported	One extended slot	One extended slot	Not supported
  MAC Address Table	32K MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
  VLAN Features	4094 VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping Super VLAN Basic QinQ and selective QinQ
  IP Routing	Static routing, RIPv1, RIPv2, ECMP, URPF, OSPF, IS-IS, and BGP VRRP Policy-based routing Routing policies RIPng OSPFv3 BGP4+ ISISv6
  Interoperability	VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP)
