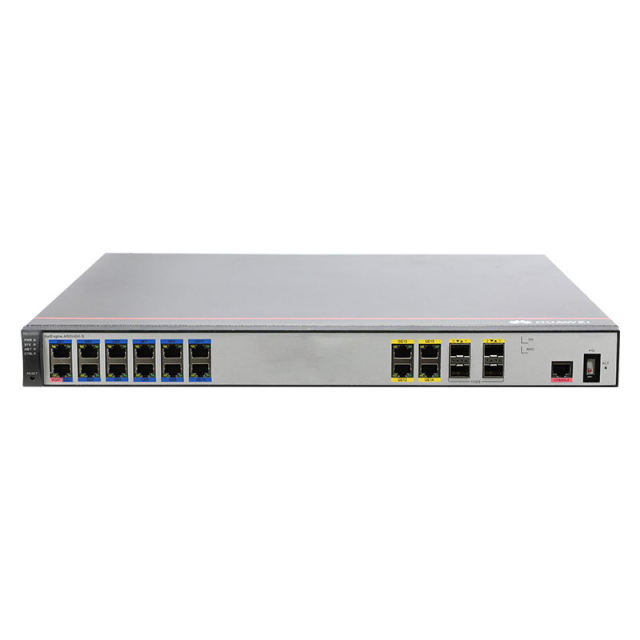

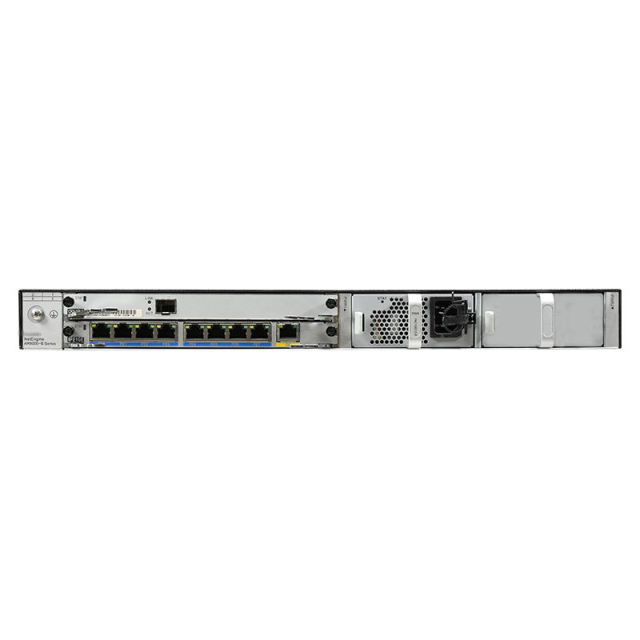

Huawei NetEngine AR6100 Series Enterprise Router - Model AR6140-16G4XG (Original and New)

No.AR6000 series

Hardware Specifications

  • Processor: 16-core, 1.85 GHz

  • Memory: 4 GB

  • Maximum Power Output: 150 W

  • LAN Ports: 4 x Gigabit Ethernet (10/100/1000Mbps)

  • WAN Ports: 2

  • Maximum LAN Data Rate: 1000Mbps

Wireless Specifications (Wi-Fi)

  • Wi-Fi Standards: 802.11b, 802.11g

  • Supported Frequencies: 2.4 GHz & 5 GHz

  • 2.4 GHz Wi-Fi Transmission Rate: 600 Mbps

  • 5 GHz Wi-Fi Transmission Rate: 2167 Mbps

  • Encryption Type: WPA2-PSK

  • Features: Supports WDS (Wireless Distribution System), Supports WPS (Wi-Fi Protected Setup)

Connectivity & Functions

  • Connection Type: Wired

  • Wired Transfer Rate: 10/100/1000Mbps

  • Modem Function: Yes

  • Key Functions: VoIP, QoS, VPN

  • Huawei NetEngine AR6100 Series Enterprise Router - Model AR6140-16G4XG (Original and New)
  • Корпоративный маршрутизатор Huawei NetEngine серии AR6100 — модель AR6140-16G4XG (оригинальный и новый)
  • Huawei NetEngine AR6100 Series Enterprise Router - Model AR6140-16G4XG (Original and New)
  • Huawei NetEngine AR6100 Series Enterprise Router - Model AR6140-16G4XG (Original and New)
  • Huawei NetEngine AR6100 Series Enterprise Router - Model AR6140-16G4XG (Original and New)
  • Huawei NetEngine AR6100 Series Enterprise Router - Model AR6140-16G4XG (Original and New)
  • Huawei NetEngine AR6100 Series Enterprise Router - Model AR6140-16G4XG (Original and New)
  • Huawei NetEngine AR6100 Series Enterprise Router - Model AR6140-16G4XG (Original and New)
  • Huawei NetEngine AR6100 Series Enterprise Router - Model AR6140-16G4XG (Original and New)
  • Description
  • Ordering & Payment Terms

Product Description

The NetEngine AR6000 series enterprise routers are designed for both enterprise headquarters and branch offices, offering the industry's most diverse service slot types. They integrate a comprehensive suite of features including SD-WAN, routing, switching, and security to provide diversified services and high performance.

Built with high-performance multi-core processors and a non-blocking switching architecture, the next-generation NetEngine AR6000 series delivers superior forwarding performance. It consolidates functions like SD-WAN, routing, switching, VPN, security, and MPLS, providing full support for diversified and cloud-based services.

The series includes models such as the NetEngine AR6120, AR6121, AR6140-9G-2AC, AR6280, and AR6300 to meet the networking requirements of enterprises of all sizes.



Parameters

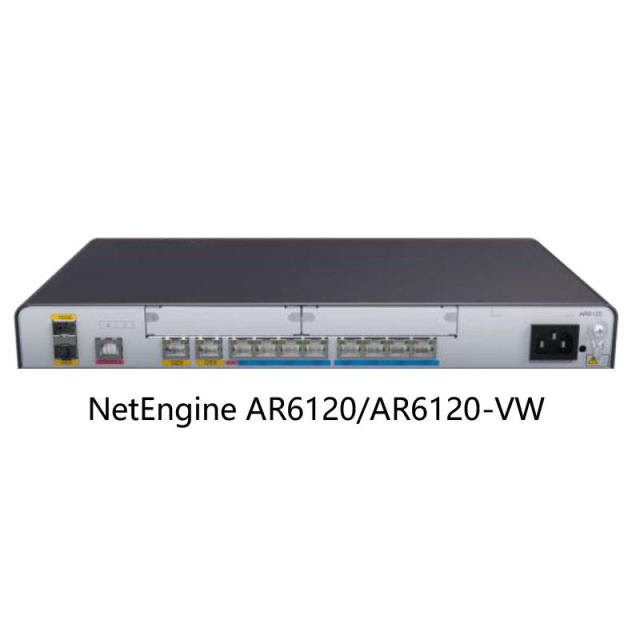

NetEngine AR6120/AR6120-VW

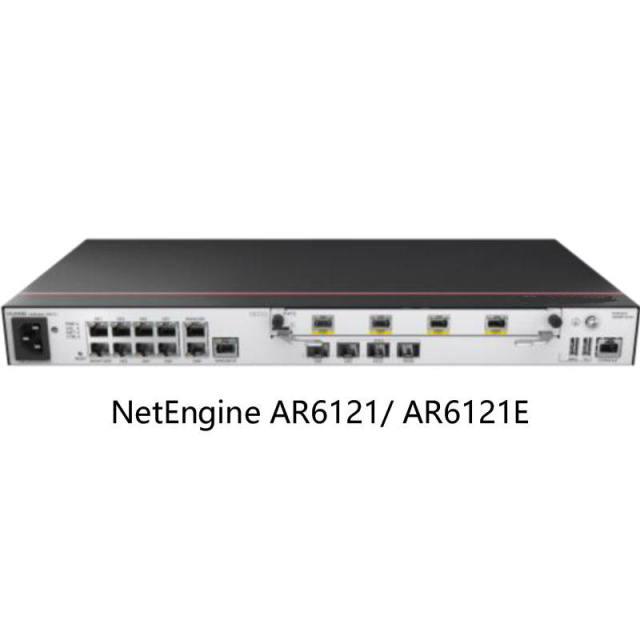

NetEngine AR6121
NetEngine AR6121E

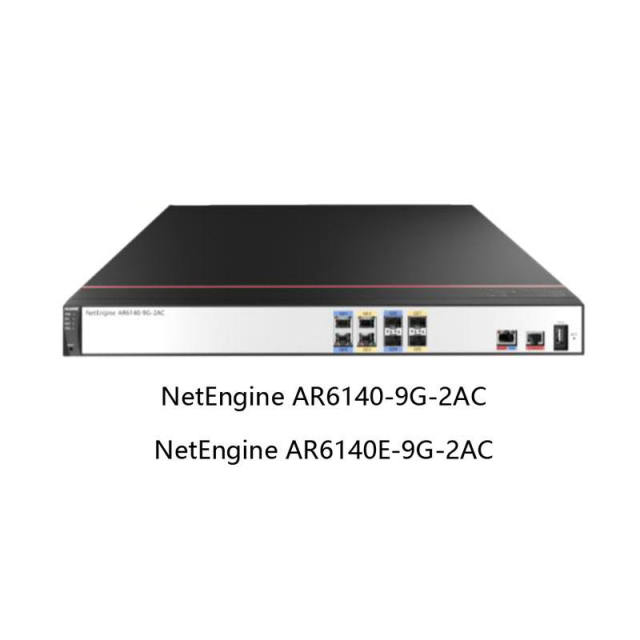

NetEngine AR6140-9G-2AC
NetEngine AR6140E-9G-2AC

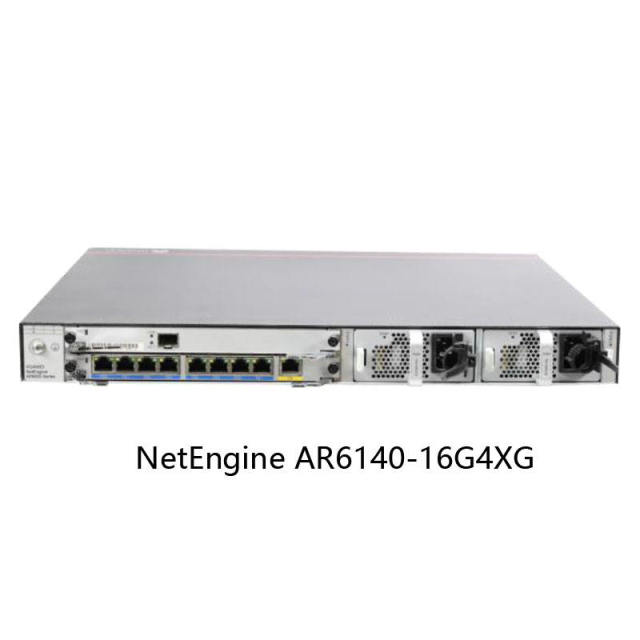

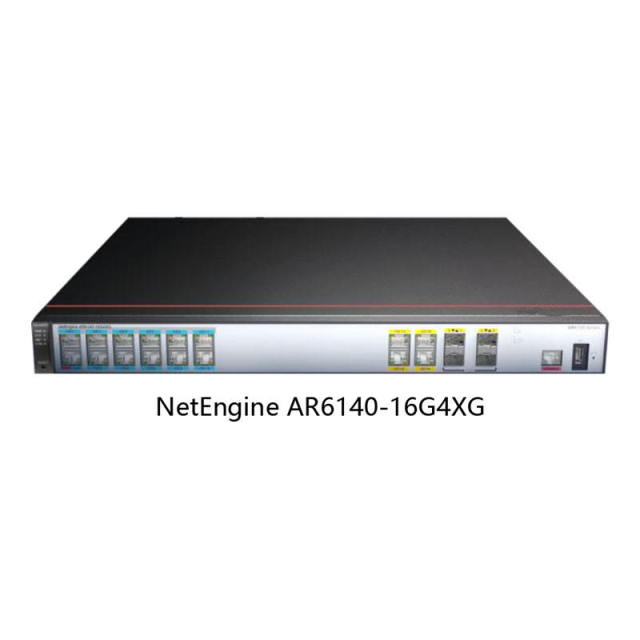

NetEngine AR6140-16G4XG
Forwarding Performance (LAN -> WAN + WAN -> LAN, NAT + ACL + QoS, IMIX)
2 Gbit/s
2 Gbit/s
2 Gbit/s
6Gbit/s
IPsec Performance (IMIX)
2 Gbit/s
2 Gbit/s
2 Gbit/s
5Gbit/s
Fixed WAN Ports
1 x GE combo, 1 x GE RJ45, and 1 x 10 GE SFP+ (compatible with GE SFP)
2 x GE combo and 1 x 10 GE SFP+ (compatible with GE SFP)
2 x GE RJ45 and 2 x GE SFP
4 x GE and 4 x 10GE SFP+ (compatible with GE optical ports)
Fixed LAN Ports
8 x GE RJ45 (can be configured as WAN)
1 x GE combo + 8 x GE RJ45 (can be configured as WAN)
2 x GE SFP and 3 x GE RJ45 (can be configured as WAN)
12 x GE (can be configured as WAN)
Wi-Fi
Dual-band (2.4 GHz and 5 GHz), 802.11b/g/n/ac (AR6120-VW only)
DSP (Voice)
Built-in 64-channel voice (AR6120-VW only)
SIC Slots
2
2
4
4
WSIC Slots
0 (default)/1 (maximum)
0 (default)/1 (maximum)
0 (default)/2 (maximum)
0 (default)/2 (maximum)
USB Port
1 x USB 3.0 (compatible with USB 2.0) and 1 x USB 2.0
1 x USB 3.0 (compatible with USB 2.0) and 1 x USB 2.0
1 x USB 3.0 (compatible with USB 2.0)
1 x USB 2.0
5G
Support 5G-SIC
Auxiliary or Console Port
1 x RJ45 console port
1 x RJ45 console port
1 x RJ45 console port
1 x RJ45 console port
Memory
2 GB
2 GB
2 GB
4GB
Flash Memory
1 GB/512 MB***
1 GB
1 GB
1 GB
Hot Swapping
Supported
Supported
Supported
Supported
