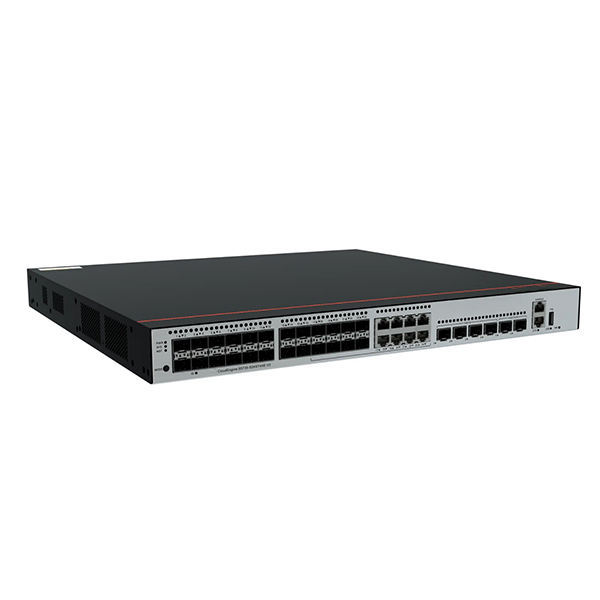

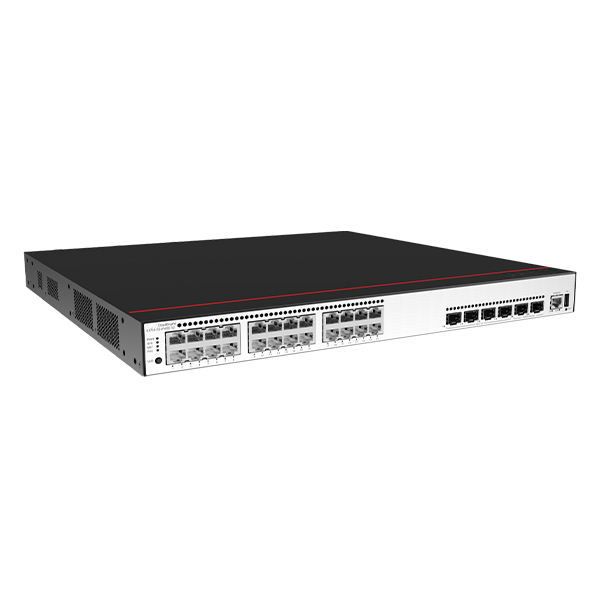

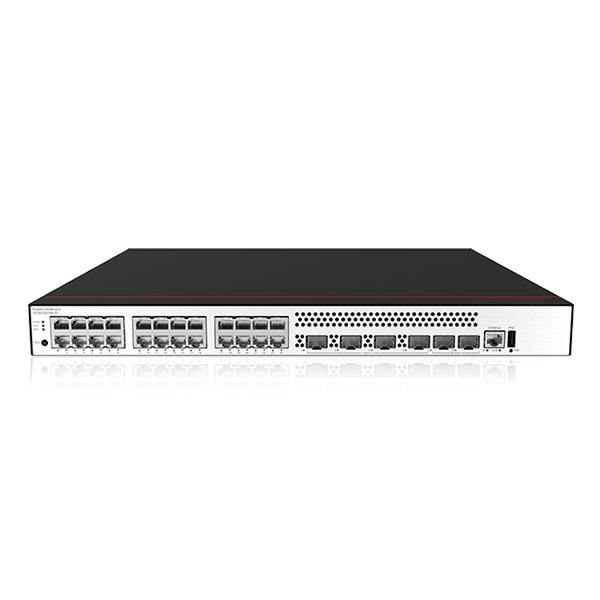

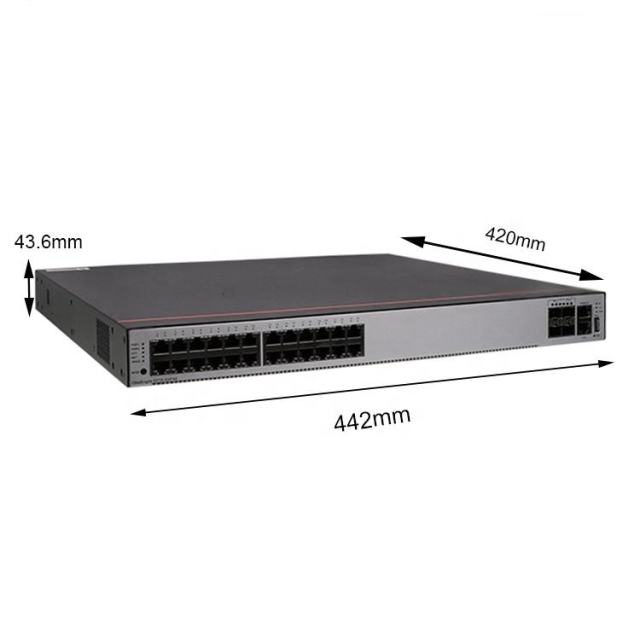

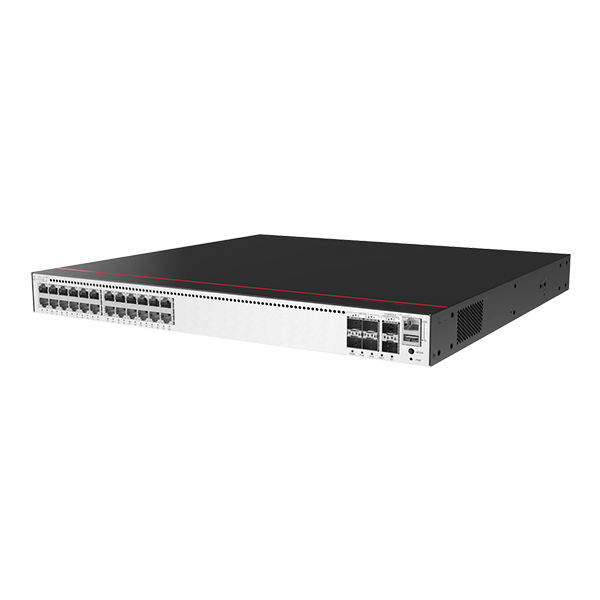

Huawei CloudEngine S5735-S24U4XE-V2 28-Port Enterprise Switch with PoE++

Series Description

The CloudEngine S5735-S-V2 Series Switches are designed for high performance and versatility. They are suitable for various networking scenarios, providing robust connectivity and advanced features for modern enterprise and data center environments.

Technical Specifications

• Fixed Ports:

  • 24 x 10/100/1000Base-T Ethernet Ports

  • 4 x 10 Gigabit SFP+ Ports

  • 2 Stack Ports

• Switching Capacity: 176 Gbps / 520 Gbps

• Forwarding Performance: 132 Mpps

  CloudEngine S5735-S Series


  Product Model	CloudEngine S5735-S24T4XE-V2	CloudEngine S5735-S24P4XE-V2	CloudEngine S5735-S24U4XE-V2	CloudEngine S5735-S48T4XE-V2	CloudEngine S5735-S48P4XE-V2	CloudEngine S5735-S48U4XE-V2
  Forwarding Performance	132 Mpps	132 Mpps	132 Mpps	168 Mpps	168 Mpps	168 Mpps
  Switching Capacity2	176 Gbps/520 Gbps	176 Gbps/520 Gbps	176 Gbps/520 Gbps	224 Gbps/520 Gbps	224 Gbps/520 Gbps	224 Gbps/520 Gbps
  Fixed Ports	24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports, 2 stack ports			48 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports, 2 stack ports
  PoE	­-	Supported,PoE+	Supported，90W PoE++	­-	Supported,PoE+	Supported，90W PoE++
  Power supply type	1+1 power supply backup	3 power supplies, N+1 power supply backup	3 power supplies, N+1 power supply backup	1+1 power supply backup	3 power supplies, N+1 power supply backup	3 power supplies, N+1 power supply backup
  MAC Features	MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting
  VLAN	4094 VLANs Voice VLAN MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
  IP Routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6
  Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) For detailed interoperability certifications and test reports, click HERE.
