Huawei CloudEngine S12700E High-Performance Enterprise Switch for Data Centers and Campuses

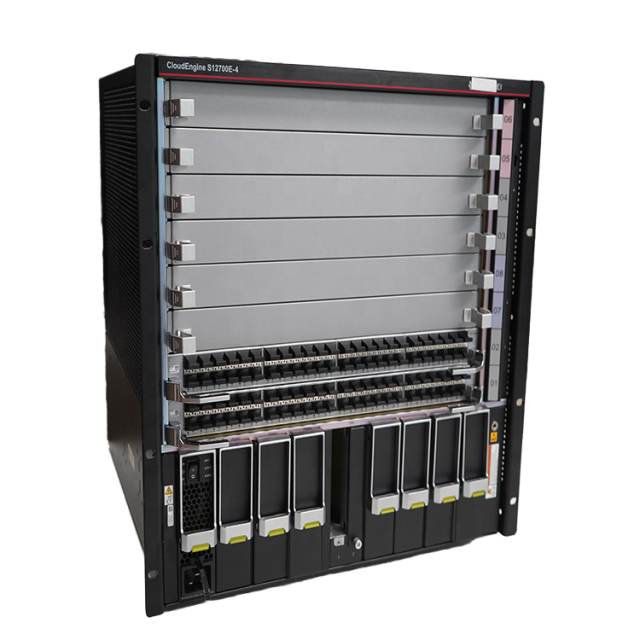

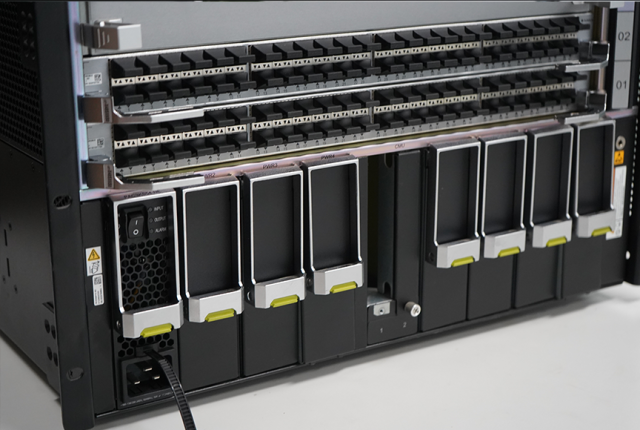

Product Description: CloudEngine S12700E-4 Core Switch

The CloudEngine S12700E is a flagship core switch designed for high-end campus networks. It enables wired and wireless convergence, full-stack openness, and smooth evolution, helping you build simplified, intelligent campus networks focused on superior service experience.

Key Features

• Large-Scale Throughput: Leveraging a high-performance chipset and advanced cell-switching technology, the S12700E delivers industry-leading single-slot bandwidth and 100 GE port density. It ensures non-blocking switching and zero packet loss for unparalleled throughput at the campus core.

• Wired & Wireless Convergence: Simplify your network operations by converging wired and wireless networks. This switch unifies user management and policy enforcement for both wired and wireless users, enabling user- and application-based quality assurance. A single S12700E can manage over 50,000 wireless users and 10,240 wireless Access Points (APs).

• Full-Stack Openness: Built with a fully programmable "Solar" chipset, the S12700E allows for service updates without hardware replacements. It facilitates network upgrades and interconnects with existing infrastructure through multiple open Application Programming Interfaces (APIs) and a robust ecosystem of partnerships.



  Product Model	CloudEngine S12700E-4	CloudEngine S12700E-8	CloudEngine S12700E-12
  Forwarding Performance	14,400 Mpps	28,800 Mpps	43,200 Mpps
  Switching Capacity2	19.2 Tbit/s/28.8 Tbit/s	38.4 Tbit/s/57.6 Tbit/s	57.6 Tbit/s/86.4 Tbit/s
  MPU Slots	2	2	2
  SFU Slots	2	4	4
  Service Card Slots	4	8	12
  Fan Slots	2	4	5
  Wireless Services	Manages up to 10K APs AP access control, AP domain management, and AP configuration template management Radio channel management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis
  iPCA	Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels
  Super Virtual Fabric (SVF)	Up to 10K clients (access switches and APs) virtualized into a single device Supports a two-layer client architecture Supports third-party devices between SVF parent and clients
  VXLAN	VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol
