Huawei AirEngine 5760-10 New Generation 802.11ax (Wi-Fi 6) Indoor Access Point / Wireless Router Board

No.5760-10

Next-Generation Wi-Fi 6: Compliant with the 802.11a/b/g/n/ac/ac Wave 2/ax standards for maximum compatibility and efficiency.
High-Density Support: Capable of connecting up to 512 users simultaneously, ensuring stable performance in crowded areas.
Smart Antenna Technology: Built-in smart antennas that direct signals towards connected devices (STAs) for enhanced coverage and a more reliable connection.
Dual-Band Performance: Operates on both 2.4 GHz and 5 GHz bands with 2x2:2 MIMO spatial streams, achieving a combined data rate of up to 1.774 Gbps.

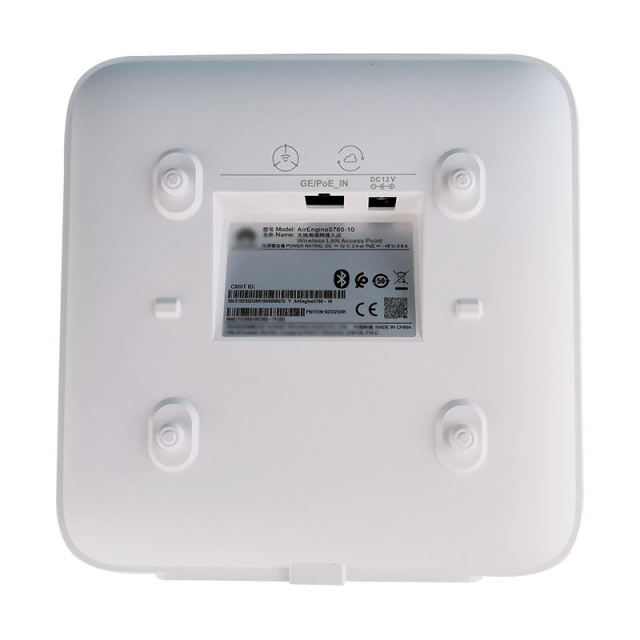

Flexible Power Options: Supports Power over Ethernet (PoE) compliant with IEEE 802.3at for easy installation, or a standard 12V DC input.

Get The Latest Quote

Add to Quote List Browse the list

Description
Ordering & Payment Terms

Product Overview: AirEngine 5760-10 Wi-Fi 6 Access Point

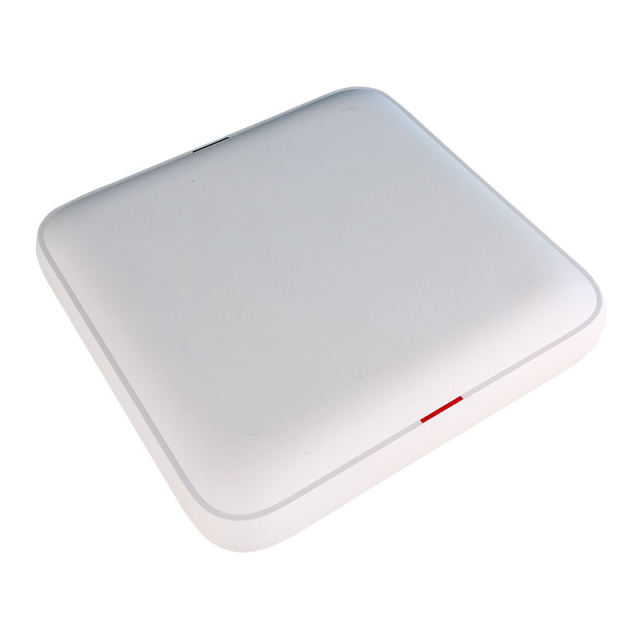

The AirEngine 5760-10 is a high-performance, indoor Wi-Fi 6 (802.11ax) access point designed to deliver superior wireless connectivity in dense environments. With its compact design and advanced features like built-in smart antennas, it is an ideal solution for small and medium enterprises (SMEs), cafés, and entertainment venues.

Specifications	AirEngine 5760-10
Dimensions (H x W x D)	47 x 200 x 200 mm
Power Input	DC: 12 V ± 10%
Power Input	PoE: In compliance with IEEE 802.3at
Maximum Power Consumption	15.8 W (excluding output power consumption of the USB interface and IoT)
Antenna Type	15.8 W (excluding output power consumption of the USB interface and IoT)

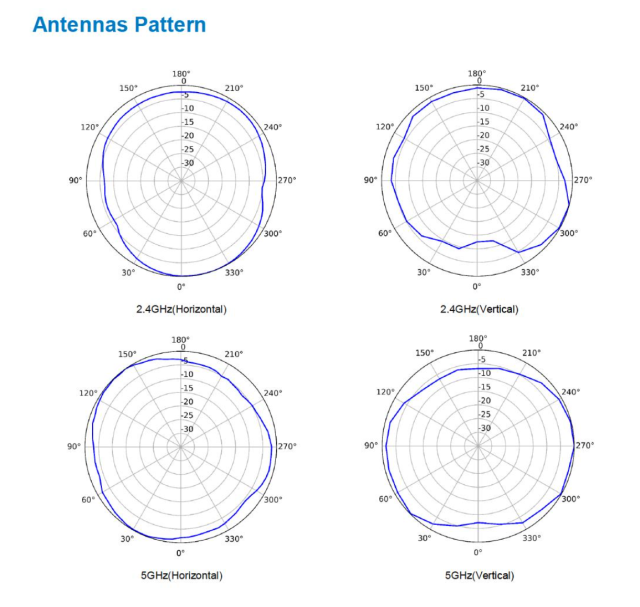

Antenna Type	Built-in smart antennas
Maximum Number of Users	≤ 512
Maximum Number of Users	Note: The actual number of users varies according to the environment.
Maximum Transmit Power	2.4G: 25 dBm (combined power)
	5G: 25 dBm (combined power)
	Note: The actual transmit power depends on local laws and regulations.
MIMO: Spatial Streams	2.4G: 2 x 2:2 5G: 2 x 2:2
Radio Protocols	802.11a/b/g/n/ac/ac Wave 2/11ax
Maximum Rate	1.774 Gbit/s

Ordering & Payment Terms:

Minimum Order Quantity (MOQ): Flexible for small orders
Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
Payment Method: T/T (Bank Transfer)
Payment Terms:
30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
