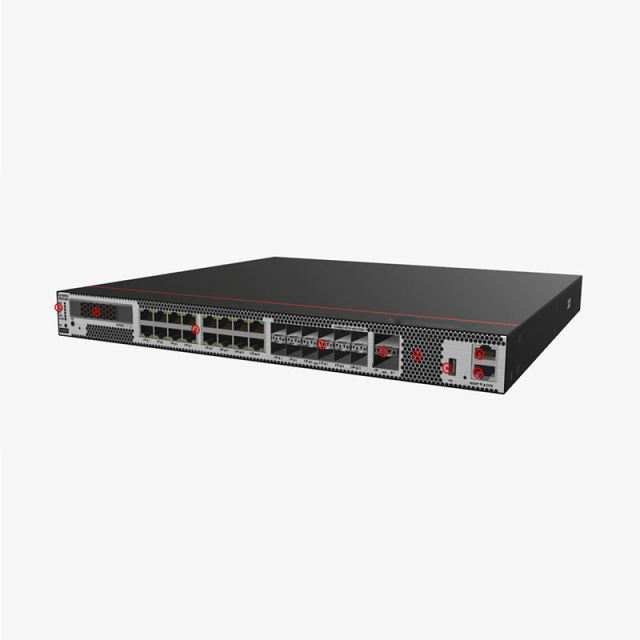

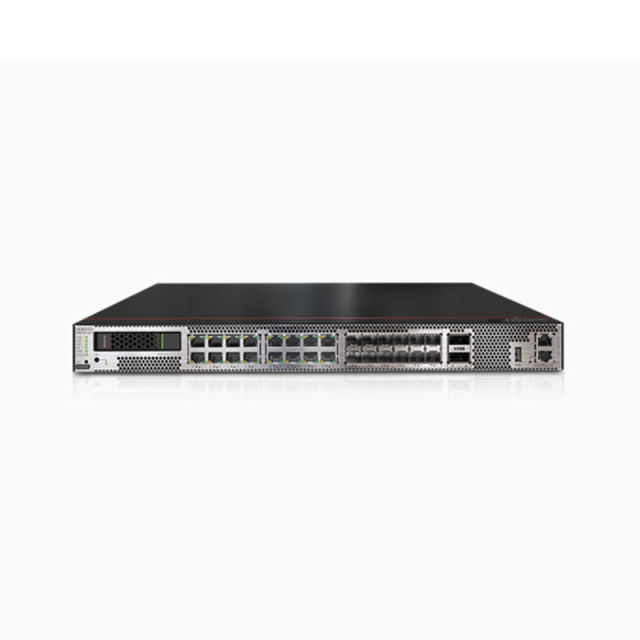

High-Security 40GE Firewall: USG6600E Series | 1U Form Factor | 40Gbps Throughput | pfSense OS

No.USG6600E Series

Network Interfaces

Fixed Ports: 2 x 40GE (QSFP+) + 12 x 10GE (SFP+) + 16 x GE (Gigabit Ethernet)

Performance & Power

Throughput | 40 Gbps
AC Power Supply | 100V to 240V

Storage & Expansion

Local Storage | Supports 1 x 2.5-inch SSD (240GB or 960GB)
Expansion Slots | 5 x WSIC slots

Connectivity & Services

Type | Wired & Wireless (supported via expansion)
VPN Support | Yes

Get The Latest Quote

Add to Quote List Browse the list

Description
Ordering & Payment Terms

Product Overview

The HiSecEngine USG6600E series next-generation firewalls are designed for medium-to-large enterprises, institutions, and data centers. They deliver advanced NGFW capabilities, integrate with other security devices for proactive threat defense, and enhance border detection. With dedicated acceleration for pattern matching and encryption/decryption, they significantly boost performance for firewall, security inspection, and IPSec services.

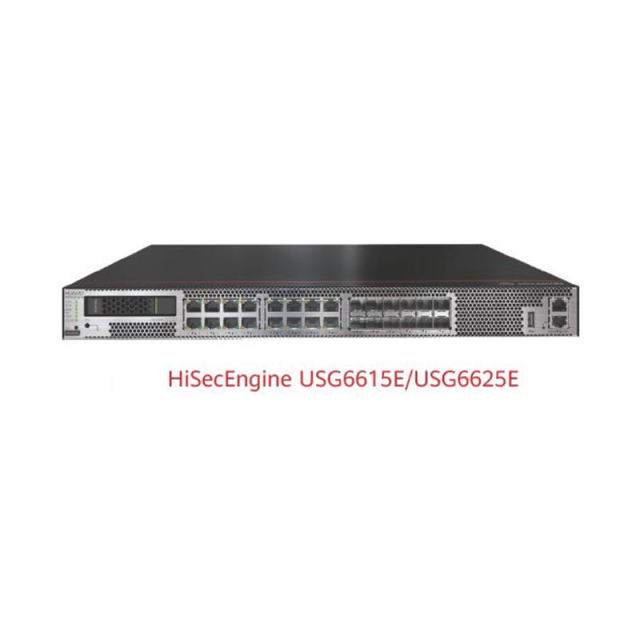

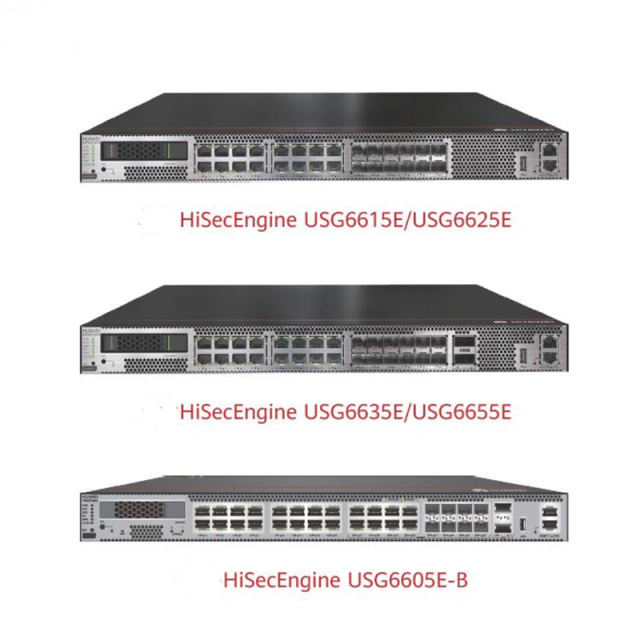

HisecEngine USG6600E Serries

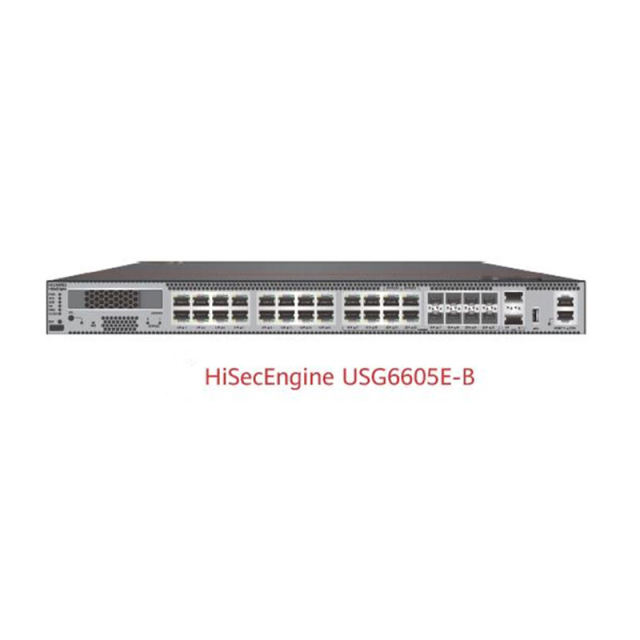

Modle	USG6610E / USG6620E	USG6630E / USG6650E	USG6680E	USG6605E-B	USG6615E / USG6625E	USG6635E / USG6655E
Fixed Interfaces	12×GE (RJ45) + 8×GE (SFP) + 4×10GE (SFP+)	2 x 40G (QSFP+) + 12 x 10 GE (SFP+) + 12 x GE + 1 x USB 3.0	4 x 40 GE (QSFP+) + 28 x 10 GE (SFP+) + 2 x 10 GE (SFP+) HA + 1 x USB 3.0	16×GE (RJ45)+ 8×GE Combo+ 2×10GE(SFP+)	6 x 10GE (SFP+) + 6 x GE (SFP) + 16 x GE	2 x 40GE (QSFP+) + 12 x 10GE (SFP+) + 16 x GE
Product Model	1U
Local Storage	Optional SSD(1×2.5 inch)supported, 240GB/960G, HDD1TB
Integrated Protection	Provides firewall, VPN, intrusion prevention, antivirus, data leak prevention, bandwidth management, anti-DDoS, URL filtering, and anti-spam functions.
Application Identification and Control	Identifies more than 6,000 applications with the access control granularity to application functions, for example, distinguishing between WeChat text and voice. Combines application identification with intrusion detection, antivirus, and data filtering, improving detection performance and accuracy.
Bandwidth Management	Manages per-user and per-IP bandwidth in addition to identifying service applications to ensure the network access experiences of key services and users. Control methods include limiting the maximum bandwidth, ensuring the minimum bandwidth, applying PBR, and changing application forwarding priorities.
Intrusion Prevention and Web Protection	Obtains the latest threat information in a timely manner for accurate detection and defense against vulnerability-based attacks. The device can defend against web-specific attacks, including SQL injection and XSS attacks.
AAPT	Collaborates with the local or cloud sandbox to detect and block malicious files. Supports the flow probe information collection function to collect traffic information and send the collected information to the Cybersecurity Intelligence System (HiSecInsight) for analysis, evaluation, and identification of threats and APT attacks. Encrypted traffic does not need to be decrypted.The firewall can work with the HiSec Insight to detect threats in encrypted traffic. The firewall can proactively respond to malicious scanning behavior and work with the HiSec Insight to analyze behavior, quickly detect and record malicious behavior, and protect enterprises against threats in real time.
Cloud Management Mode	Initiates authentication and registration to the cloud management platform to implement plug-and-play and simplify network creation and deployment. Remote service configuration management, device monitoring, and fault management are used to implement cloud-based management of massive numbers of devices.
Cloud Application Security Awareness	Controls enterprise cloud applications in a refined and differentiated manner to meet enterprises’ requirements for cloud application management.
