Product Overview The H3C S5130S-EI Switch Series is a cost-effective, fixed-configuration access switch designed for easy deployment. It features Power over Ethernet Plus (PoE+) for powering connected devices and offers enhanced security, high-density Gigabit Ethernet access, and flexible 10GbE uplinks. It is an ideal solution for SME access, enterprise desktop, and high-density campus networks.
Technical Specifications
Category
Specification
Brand & Model
H3C LS-5130S-28P-HPWR-EI (OEM)
Product Name

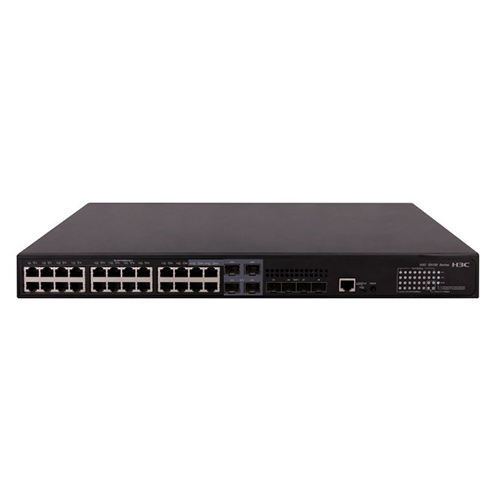

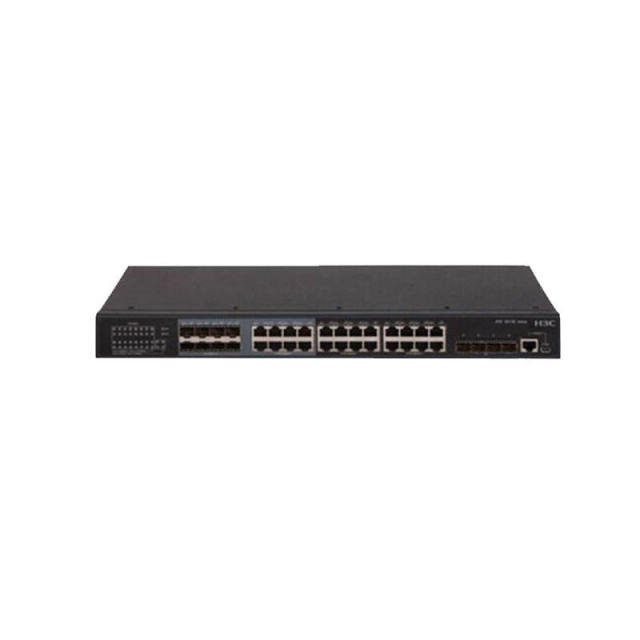

H3C S5130S-28S-HPWR-EI Gigabit Ethernet Switch
Physical Ports
24 x Gigabit Ethernet Ports (PoE+)
Uplink Ports
4 x 1G/10G SFP+
Transmission Rate
10/100/1000Mbps
Switch Capacity
128 Gbps
Forwarding Capacity
96 Mpps
Communication Mode
Full-Duplex & Half-Duplex
Dimensions (W x D x H)
440 x 460 x 43.6 mm
Weight
≤ 8.5 kg
Memory
Flash: 256MB / SDRAM: 512MB
MTBF
89.35 Years
High Performance: High switching capacity (128Gbps) and forwarding rate (96Mpps) for demanding network environments.
Power over Ethernet: Integrated PoE+ support on all 24 ports to power devices like IP phones, wireless access points, and cameras.
Layer 3 Features: Supports static routing, RIP, and OSPF for advanced network routing.
Resilience & Scalability:
IRF (Intelligent Resilient Framework): Allows multiple physical switches to be stacked and managed as a single logical device.
LACP (Link Aggregation Control Protocol): For increased bandwidth and link redundancy.
Network Segmentation: Comprehensive VLAN Support for secure and efficient network management.
Software-Defined Networking (SDN): Enabled for modern, programmable network infrastructure.
Reliability: High MTBF of 89.35 years, ensuring long-term operational stability.
Ordering & Payment Terms:
Minimum Order Quantity (MOQ): Flexible for small orders
Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
Payment Method: T/T (Bank Transfer)
Payment Terms: 30% advance payment, with 70% balance due prior to shipment for bulk orders
BANK INFORMATION
Bank Name: DBS BANK (HONG KONG) LIMITED Account Name: Shenzhen VAN Electronics Co., Ltd. Account No.: 798 291 1671 Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong Swift Code: DHBKHKHH
Contact for Quotation: Kindly email your requirements tosales@szvan.comfor a customized quotation and optimal solution. Attn:Jessica Lee
