Finisar FTLF8536P5BCL 25G SR SFP28 Transceiver, 25.78Gb/s LC for 4G Network RoHS

Product Summary

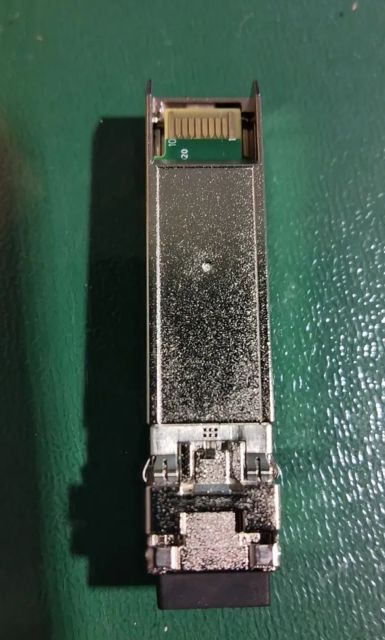

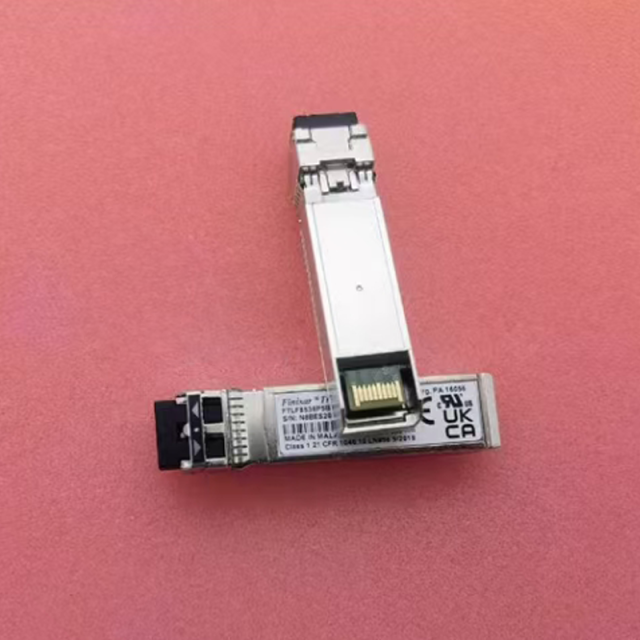

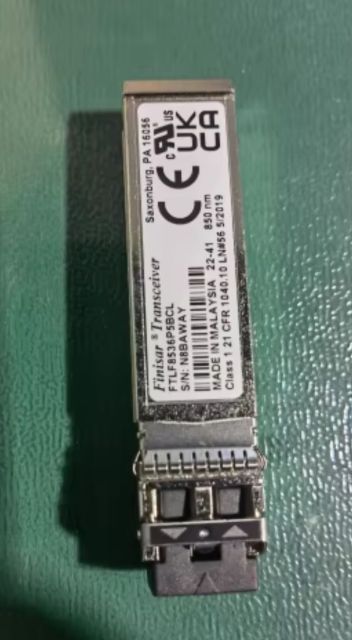

This is a Finisar FTLF8536P5BCL, a high-performance 25G optical transceiver module manufactured in Beijing, China. It is designed for short-range, high-speed data connections over multimode fiber.

Product Information

• Brand Name: Finisar

• Model Number: FTLF8536P5BCL

• Place of Origin: Beijing, China

• Warranty: 1 Year

Key Specifications

• Form Factor: SFP28 (Hot-pluggable, SFP+ footprint)

• Data Rate (Max): 25.78 Gb/s

• Protocol: 25G Ethernet Compliant (IEEE 802.3by)

• Operating Case Temperature: 0°C to 70°C

• Supply Voltage: 3.3V

Optical Components

• Transmitter: 850nm VCSEL Laser

• Receiver: PIN Photodetector

• Connector: Duplex LC

Transmission Distance

• OM4 MMF (50/125μm): Up to 100 meters

• OM3 MMF (50/125μm): Up to 70 meters

• OM2 MMF (50/125μm): Up to 20 meters

Packaging & Delivery

• Selling Units: Single item

• Package Size: 15 x 6 x 2 cm

• Gross Weight: 0.500 kg

Detailed Product Description

The FTLF8536P5BCL SFP28 optical transceiver is designed for use in 25 Gb/s bi-directional data links over multimode fiber. It is fully compliant with the IEEE 802.3by standard for 25G Ethernet, SFF-8472 Rev 12.2 (Digital Diagnostic Monitoring), and SFF-8402, and is compatible with SFF-8432 and SFF-8431 Rev. 4.1.

Key Features:

• Supports data rates up to 25.78 Gb/s.

• Hot-pluggable SFP+ footprint for easy installation.

• Built-in digital diagnostic functions for real-time performance monitoring.

• RoHS compliant.

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
