Finisar FTLF1318P3BTL SFP Transceiver 1Gbps 1000BASE-LX / 1GFC 10km Range Gen3

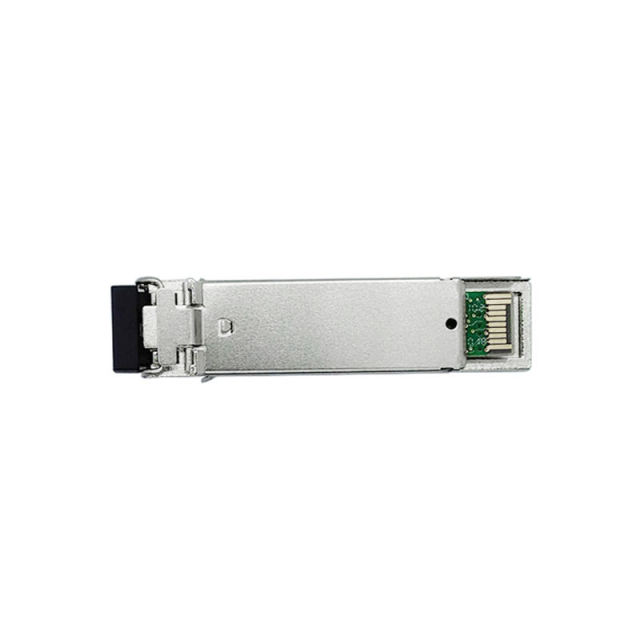

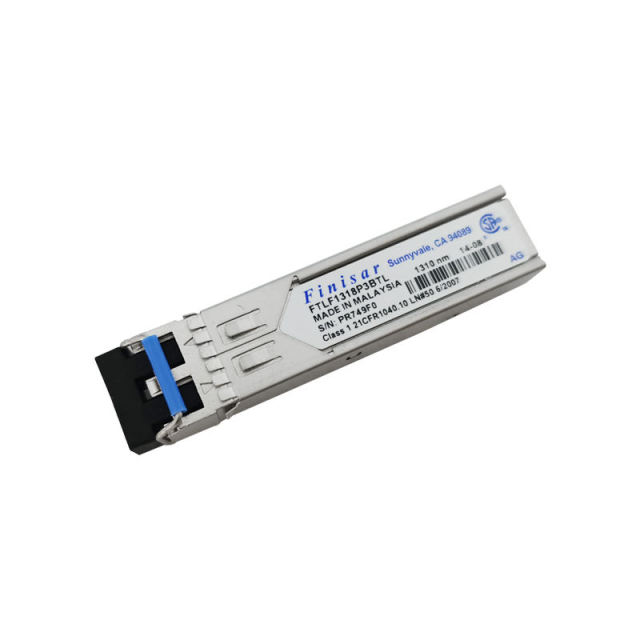

Product Overview: FTLF1318P3BTL SFP Optical Transceiver

The Finisar FTLF1318P3BTL is a Small Form Factor Pluggable (SFP) transceiver designed for high-speed data communication over fiber optic networks. It is fully compatible with the SFP Multi-Sourcing Agreement (MSA) and supports both Gigabit Ethernet and 1x Fibre Channel applications.

The FTLF1318P3BTL Small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE Std 802.3 and 1x Fibre Channel as defined in FC-PI-4. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is RoHS compliant.

This module operates at a 1310 nm wavelength and supports a maximum data rate of 1.25 Gb/s for transmission distances up to 10 kilometers. It employs a high-performance DFB Laser as its transmitter and a PIN Photodetector as its receiver.

Electrical & Environmental Specifications

• Supply Voltage: 3.3 V

• Operating Case Temperature Range: -40°C to +85°C

• Diagnostics: It features Digital Diagnostic Monitoring (DDM) functionality, accessible via a 2-wire serial interface.

Standards & Compliance

The transceiver is compliant with IEEE 802.3 for Gigabit Ethernet and 1x Fibre Channel (FC-PI-4) standards. It is also RoHS compliant.

Ordering & Payment Terms:

• Minimum Order Quantity (MOQ): Flexible for small orders
• Shipping: DDP (Delivered Duty Paid) to your destination or shipment via your designated courier account.
• Payment Method: T/T (Bank Transfer)
• Payment Terms:
  30% advance payment, with 70% balance due prior to shipment for bulk orders

BANK INFORMATION

Bank Name: DBS BANK (HONG KONG) LIMITED
Account Name: Shenzhen VAN Electronics Co., Ltd.
Account No.: 798 291 1671
Bank Address: 11th Floor, The Center, 99 Queen's Road Central, Central, Hong Kong
Swift Code: DHBKHKHH

Contact for Quotation:
Kindly email your requirements to sales@szvan.com for a customized quotation and optimal solution.
Attn: Jessica Lee
